Nov 23, 2017

How to create scrollable dynamic text in Unity 5.x


In this tutorial, i will show you how to make scrolling content in unity and how to set content for scrollable textarea.

REFERENCE: http://sawit.net/how-to-create-scrollable-dynamic-text-in-unity-5.html

Nov 22, 2017

Output Structs for Unity Shaders Used in Unity 5.x

The way shaders allow you to communicate the rendering properties of your material to their lighting model is via a surface output. It is basically a wrapper around all the parameters that the current lighting model needs. It should not surprise you that different lighting models have different surface output structs. The following table shows the three main output structs used in Unity 5 and how they can be used:


The SurfaceOutput struct has the following properties:
  • fixed3 Albedo;:  This is the diffuse color of the material
  • fixed3 Normal;:  This is the tangent space normal, if written
  • fixed3 Emission;: This is the color of the light emitted by the material (this property is    declared as half3 in the Standard Shaders)
  • fixed Alpha;: This is the transparency of the material
  • half  Specular;: This is the specular power from 0 to 1
  • fixed Gloss;: This is the specular intensity
The SurfaceOutputStandard struct has the following properties:
  • fixed3 Albedo;: This is the base color of the material(whether it’s diffuse or specular)
  • fixed3 Normal;
  • half3 Emission;: This property is declared as half3, while it was defined as fixed in  SurfaceOutput
  • fixed Alpha;
  • half Occlusion;: This is the occlusion (default  1)
  • half Smoothness;: This is the smoothness (0  =  rough, 1 =  smooth)
  • half Metallic;: 0 =  non-metal, 1 = metal
The SurfaceOutputStandardSpecular struct has the following properties:
  • fixed3 Albedo;.
  • fixed3 Normal;.
  • half3 Emission;.
  • fixed Alpha;.
  • half Occlusion;.
  • half Smoothness;.
  • fixed3 Specular;: This is the specular color. This is very different from the Specular    property in SurfaceOutput as it allows specifying a color rather than a single value.
Using a Surface Shader correctly is a matter of initializing the surface output with the correct values.

Unity 5.x - Surface Shader Property Types

Clean Unity’s Project Wizard in Unity 5.x on Windows 10

There are two ways to delete a project in the Unity’s project wizard. The first one is simply deleting, renaming or moving the directory directly from its location. The project wizard is smart enough and this is the recommended option.


The second one requires administrator privileges and deleting the registry entries associated with the projects we want to get rid of from the wizard’s list without deleting, moving or renaming the directories.

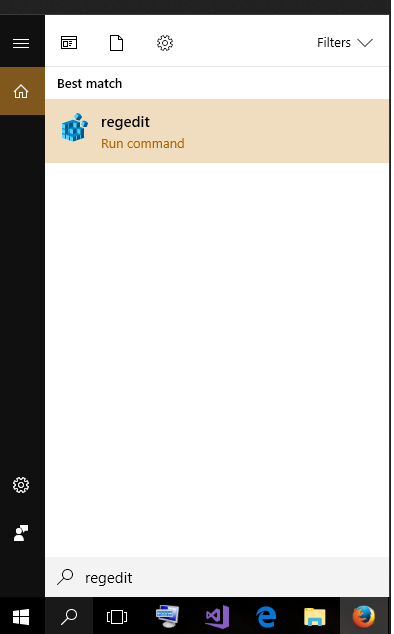

1 - Go to Windows registry (run regedit.exe).

2 - In the Windows registry, go to
HKEY_CURRENT_USER/Software/Unity Technologies/Unity Editor 5.x/

4- Find the entries which names begin with “RecentlyUsedProjectPaths-“. They’re numbered. If you click on the entry you can see your project path.

5- Select and delete the entries you want to get rid of.

Reference: This post is updated version of the solution from http://jorge.palacios.co/clean-unitys-project-wizard-in-unity-4-x/

Nov 18, 2017

Physically Based Rendering and lighting models in Unity3D

Why is it colder at the poles and hotter on the equator? This question, which seems completely unrelated to shaders, is actually fundamental to understand how lighting models work. As explained in the previous part of this tutorial, surface shaders use a mathematical model to predict how light will reflect on triangles. Generally speaking, Unity supports two types of shading techniques, one for matte and one for specular materials. The former ones are perfect for opaque surfaces, while the latter ones simulate objects which reflections. The Maths behind these lighting models can get quite complicated, but understanding how they work is essential if you want to create your own, custom lighting effect. Up to Unity4.x, the default diffuse lighting model was based on the Lambertian reflectance.

Diffuse surfaces: the Lambertian model

Going back to the initial question, the reason why the poles are colder, is because they receive less sunlight compared to the equator. This happens because of their relative inclination from the sun. The following diagram shows how the polar edges of the octagon receive sensibly less light compared the frontal one:
Light Geometry2
The blue line represents the normal of the face, which is an orthogonal vector of unit length. The orange one represents the direction of the light. The amount of light I on the fade depends on the angle between the normal N and the light direction L. In the Lambertian model, this quantity is equal to the vertical component of the incident light ray:
light cos

Which can be expressed as:
    \[I= \left \| L \right \| \, cos \alpha = cos \alpha\]

where \left \| L \right \| is the length of L (which is one by definition) and \alpha is the angle between N and L. This operation, in vector algebra, is known as dot product as was briefly introduced in the previous post. Formally, it is defined as the follow:
    \[A \cdot B = \left \| A \right \|  \, \left \| B \right \| \, cos \alpha\]
and is available in Cg / HLSL using the function dot. It returns a number ranging from -1 to +1 which is zero when the vectors are orthogonal, and \pm1 when they are parallel. We’ll use it as a multiplier coefficient to determine how much light triangles receive from a light source.

The Lambertian shader

We now have all the necessary background to understand how a Lambertian model can be implemented in a shader. Cg / HLSL allows to replace the standard Lambertian model with a custom function. In line 8, using  SimpleLambert in the directive #pragma surface forces the shader to search for a function called LightingSimpleLambert:
Lines 19-25 shows how the Lambertian model can be naively re-implemented in a surface shader. NdotL represents the coefficient of intensity, which is then multiplied to the colour of the light. The parameters atten is used to modulate the intensity of the light. The reason why it is multiplied by two is… a trick initially used by Unity3D to simulate certain effects. As explained by Aras Pranckevičius, it has been kept in Unity4 for backward compatibility. This has been finally fixed in Unity5, so if you’re reimplementing a Lambertian model for Unity5, just multiply by one.
Understanding how the standard lighting model works is an essential step if we want to change it. Many alternative shading techniques, in fact, still use the Lambertian model as their first step.

Toon shading

One of the most used styles in games lately is the toon shading (also known as cel shading). It’s a non photorealistic rendering style which changes the way light reflects on a model to give the illusion it has been hand drawn. To implement this style, we need to replace the standard lighting model used so far with a custom one. The most common technique to achieve this style is to use an additional texture, called _RampTex in the shader below.
toon

The LightingToon model calculates the Lambertian coefficient of intensity NdotL and uses the ramp texture to re-map it onto a different set of values. In this case, to restrict the intensity to four values only. Different ramp textures will achieve slightly different variants of toon shading.
ramp



Specular surfaces: the Blinn-Phong model

The Lambertian model cannot simulate materials which have specular reflections. For them, another technique is necessary; Unity4.x adopts the Blinn-Phong model. Rather than calculating the dot product between the normal N and the light direction L, it uses H which is the vector halfway between L and the view direction V:
BlinnPhong
    \[\mathrm{Lambertian\,model:} \,\,\,\     I = N \cdot L\]
    \[\mathrm{Blinn-Phong\,model:} \,\,\,\     I = \left ( N \cdot  H \right )^{specular} \cdot gloss\]
    \[H = \frac{L+V}{\left| L +V\right|}\]

The quantity N \cdot H is then processed further using the specular and gloss settings. If you need more information on how Unity calculates its lighting models, you can download the source for its built-in shaders. Both the Lambertian and Blinn-Phong surface functions are calculated in the file Lighting.cginc. In Unity5 they’re available as Legacy shaders.

Physically Based Rendering in Unity5

As mentioned at the beginning of this post, Uniy4.x was using the Lambertian lighting model as its default shader. Unity5 has changed that, introducing the Physically Based Rendering (PBR). The name sounds very intriguing, but is nothing more then another lighting model. Compared to the Lambertian reflectange, PBR provides a more realistic interaction between lights and objects. The term physically refers to the fact that PBR takes into account physical properties of materials, such as conservation of energy and light scatter. Unity5 provides two different ways for artists and developers to create their PBR materials: the Metallic workflow and the Specular workflow. In the first one, the way a material reflects light depends on how metallic it is. A cheap explanation is that light is an electromagnetic wave, and it behaves differently when in contact with a conductor or an insulator. In the Specular workflow, a specular map is provided instead. Despite being presented as two different things, Metallic and Specular materials are actually different ways to initialise the same shader; Marmoset has a very well done tutorial in which it shows how the same material can be created both with the Metallic and Specular workflows. Having two workflows for the same thing is one of the main sources of misunderstanding when approaching Unity5 shaders for the first time. Joe Wilson made an incredibly clear tutorial oriented to artists: it’s a good starting point if you want to learn how to use PBR to create highly realistic materials. If you need some more technical information, there’s a very well done primer on PBR on the Unity5 blog.
metallic

The name of Unity5’s new lighting model is, simply, Standard. The reason behind this name is that PBR is now the default material for every new object created in Unity3D. Moreover, every new shader file created is automatically configured as a PBR surface shader:
soldier standard

Line 14 tells Unity3D that this surface shader will use the PBR lighting model. Line 17 signals that advanced features are being used in this shader, hence it won’t be able to run on outdated hardwares. For the same reason, SurfaceOutput can’t be used with PBR; SurfaceOutputStandard must be used instead.

PBR surface outputs

Along  Albedo, Normal, Emission and Alpha, there are three new properties available in SurfaceOutputStandard:
  • half Metallic: how metallic the object is. It’s usually either 0 or 1, but intermediate values can be used for bizarre materials. It will determine how light reflects on the material;
  • half Smoothness: indicates how smooth the surface is, from 0 to 1;
  • half Occlusion: indicates the amount of ambient occlusion.
If you want to use the Specular workflow, you should use SurfaceOutputStandardSpecular which replaces half Metallic with float3 Specular. Note that while the Lambertian reflectance has a specular field which is half, the specular property in PBR is a float3. It corresponds to the RGB colour of the specularly reflected light.

Shading technique used in Unity

So far, four different shading techniques have been introduced. To avoid confusion, you can refer to the table below which indicates, in order: shading technique, surface shader name, surface output structure name and the name of the respective built-in shader.

Unity4 and below Unity5 and above
Diffuse Lambertian reflectance
Lambert, SurfaceOutput Bumped Diffuse
    \[I = N \cdot L\]
Physically Based Rendering (Metallic)
Standard, SurfaceOutputStandard Standard
Specular Blinn–Phong reflection
BlinnPhong, SurfaceOutput Bumped Specular
    \[I = \left ( N \cdot  H \right )^{specular} \cdot gloss\]
Physically Based Rendering (Specular)
StandardSpecular, SurfaceOutputStandardSpecular Standard (Specular setup)
The equations behind PBR are rather complicated. If you are interested in understanding the Maths behind it, both the Wikipedia page for Rendering equation and this article are good starting points.
If you imported the Unity3D package (which includes the shader used in this tutorial), you’ll notice how the built-in “Bumped Diffuse” shader yields a very different result compared to its naive implementation “Simple Lambert”. This is because Unity3D’s shader adds additional features, such as normal maps.

Conclusion

This post introduced custom lighting models for surface shaders. The Lambertian and Blinn-Phong models are briefly explained, with a real example of how they can be changed to obtain different effects. It is important to notice that purely diffuse materials don’t really exist in real life: even the most dull material you can think of will have some specular reflection. Diffuse materials were very common in the past, when calculating specular reflections was too expensive.
The post also shows what physically based rendering is, and how it can be used in Unity5. PBR shaders are nothing more then surface shaders with a very advanced lighting model.




Shaders Part 5

Implementation of Specular, Diffuse Distance, Normal Extrusion shaders.
Dowload from  http://www.gundorovski.com/


Shaders Part 4

Implementation of Lambert, Half Lambert, Toon Wrap shaders.
Dowload from  http://www.gundorovski.com/


Shaders Part 3

Implementation of Reflection, Vertex Color, Fog shaders.
Dowload from  http://www.gundorovski.com/


Shaders Part 2

Implementation of Rim Light, Detail Texture, Detail Texture Screen Shaders.
Dowload from  http://www.gundorovski.com/


Shaders Part 1

Implementation of Diffuse, Texture and Normal shaders.
Dowload from  http://www.gundorovski.com/




Nov 13, 2017

Custom data computed per-vertex - Unity Shader Bug fix

On Unity's web site (https://docs.unity3d.com/2017.3/Documentation/Manual/SL-SurfaceShaderExamples.html), Custom data computed per-vertex Shader has a bug, when I try the shader I get correct result in Scene view but not int Game view.


The fix is normalizing the normals.Just add normalize.

void vert (inout appdata_full v, out Input o) {
            UNITY_INITIALIZE_OUTPUT(Input,o);
            o.customColor = normalize(abs(v.normal));

}

Then correct result is:
